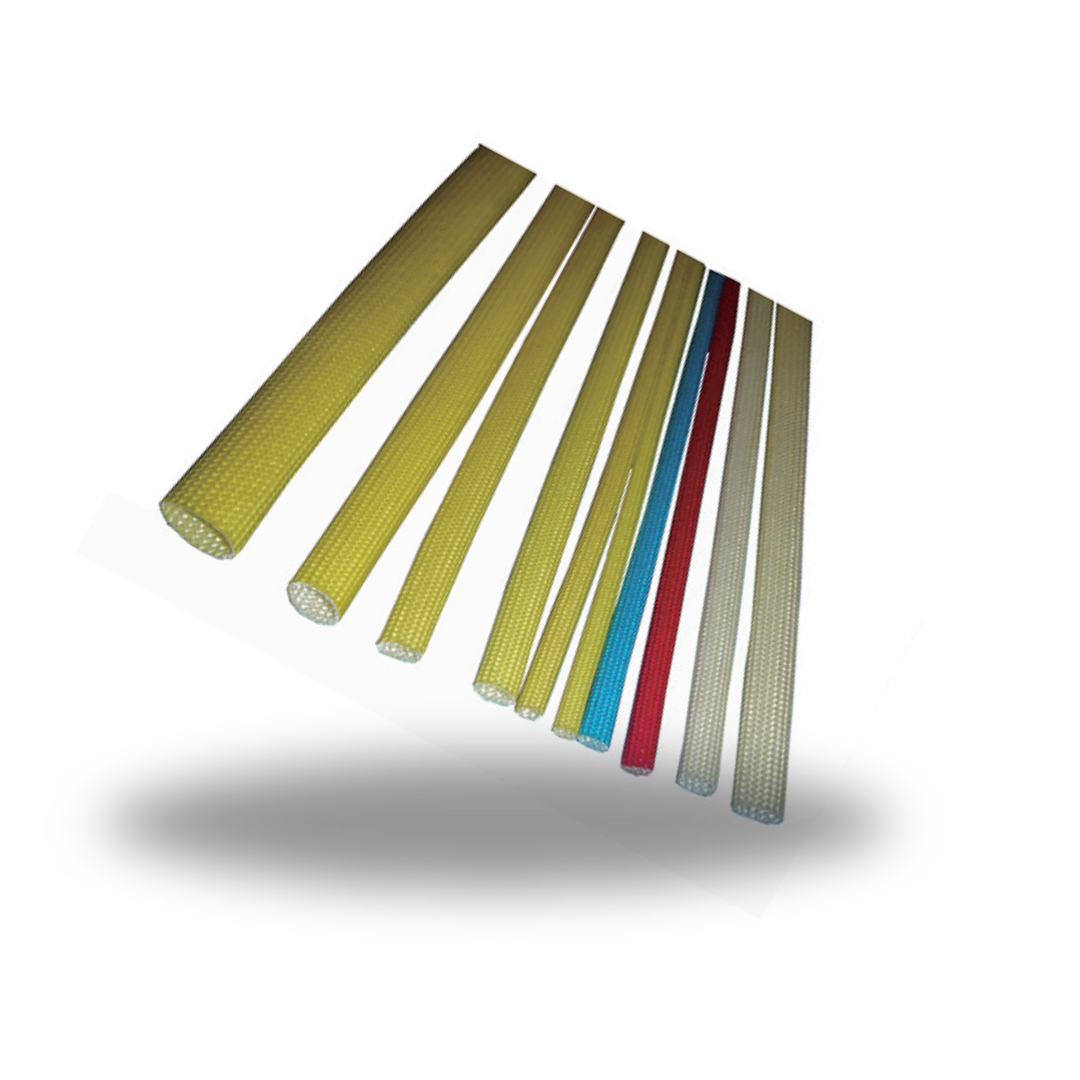

Acrylic Fiberglass Sleeving

ACRYFLEX-F fiberglass sleeving is a Class 155ÅãC electrical insulation, manufactured by impregnating and coating a finely braided fiberglass sleeving with a dielectric film of acrylic resin. ACRYFLEX-F sleeving is recommended as a universal coated sleeving for all thermal requirements from Class 105ÅãC through Class 155ÅãC.

Available Grades

ACRYFLEX-F sleeving is available in the following grades. The dielectric breakdown voltages given are measured according to ASTM D149, using a rate of voltage increase of 500 volts/second.

Grade A 7,000 Volts Min.Avg. 5,000 Volts Min. Indiv.

Grade B 4,000 Volts Min. Avg. 2,500 Volts Min. Indiv.

Grade C-12,500 volts Min. Avg. 1,500 Volts Min. Indiv.

Applications

ACRYFLEX-F sleeving is widely used in fractional and integral horse-power motors on leads and crossovers. Other uses exist in dry and oil-filled transformers, relays of many types, radio and television circuits, welding apparatus and many others.

Sizes

lnner Diameter(mm)1, 1.5, 2, 2.5, 3, 3.5, 4, 5, 6, 7, 8, 9, 10, 12, 14,

16, 18, 20, 22, 24, 25, 27, 30.

Standard Colours

0.5mm to 25mm-Natural(varies from white to tan), black, red and yellow, green and blue.
