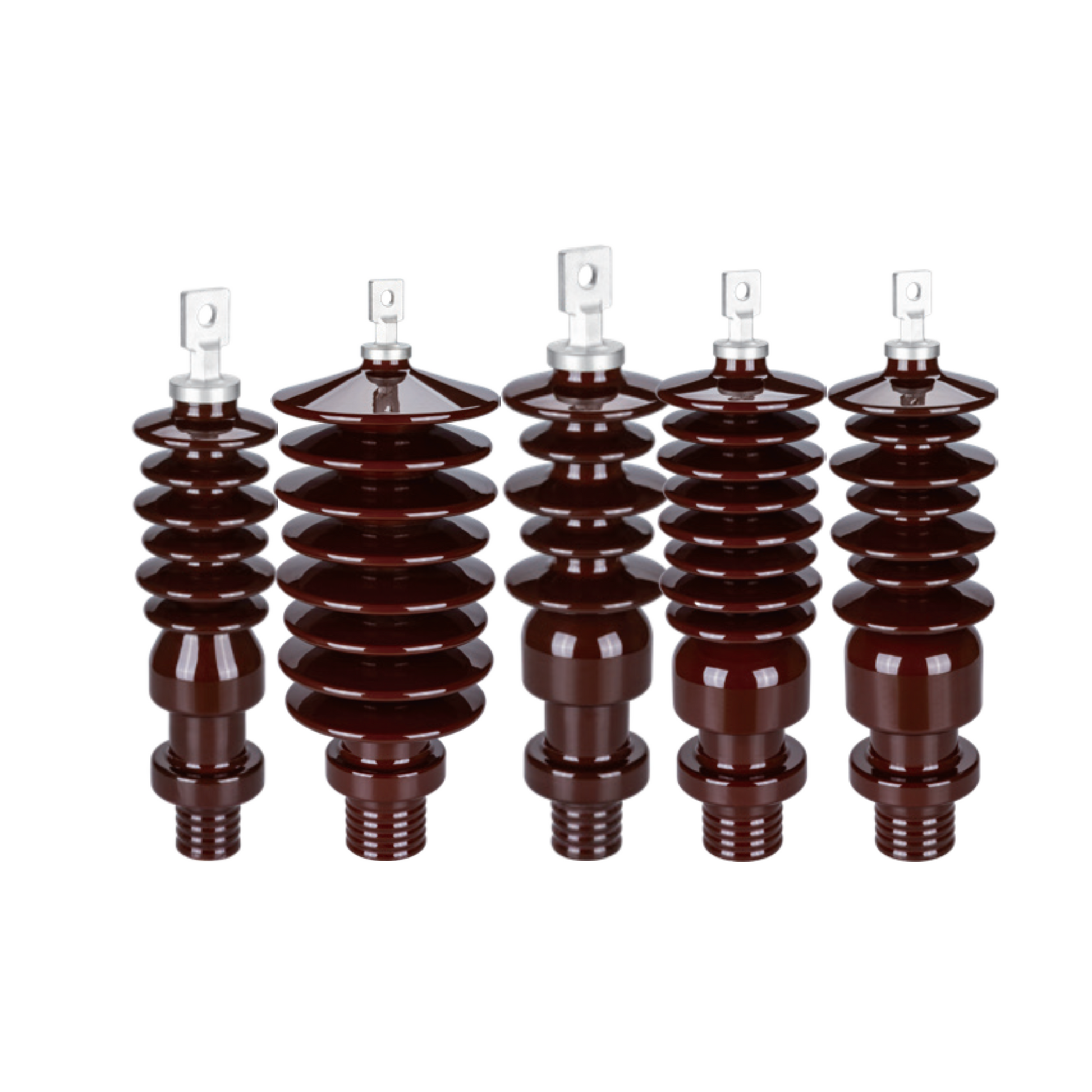

Ceramic Bushing Insulators (SAU Standard Series)
Ceramic Bushing Insulators (SAU Standard Series)
Regular price
R 0.00
Regular price
Sale price
R 0.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Transformer bushing insulators are insulating components that facilitates the passage of an energised, current-carrying conductor through the grounded tank of the transformer.
The entire range of bushings ratings has from - 1 Kv to 72 Kv & - 100 Amp. to 10,000 Amp.
All Ares Insulator transformer bushing insulators are made of ceramic materials according to IEC 672.
Other transformer bushing custom-made insulators can be supplied upon the customer's request and specifications.
Specifications
| Part number | U.m (kV) | Ir (A) | Tank Hole Size (mm) |
CD (mm) |
Stem Connect |
| SAU 12/30 Draw lead | 12 | 30 | 50 | - | - |
| SAU 12/30 Draw lead | 12 | 30 | 50 | - | - |
| SAU 12/250 Solid | 12 | 250 | 50 | - | - |
| SAU 12/250 Solid | 12 | 250 | 50 | - | - |
| SAU 12/630 | 12 | 630 | 60 | - | - |
| SAU 24/30 Draw lead | 24 | 30 | 80 | - | - |
| SAU 24/30 Draw lead | 24 | 30 | 80 | - | - |
| SAU 24/250 | 24 | 250 | 80 | - | - |
| SAU 24/250 | 24 | 250 | 80 | - | - |
| SAU 24/630 | 24 | 630 | 80 | - | - |
| SAU 24/630 | 24 | 630 | 80 | - | - |
| SAU 36/30 Draw lead | 36 | 30 | 90 | - | - |
| SAU 36/250 | 36 | 250 | 90 | - | - |
| SAU 36/630 | 36 | 630 | 90 | - | - |
Catalogue
GANELEC/OUCO Transformer Equipment Accessories Catalogue - pg 18
