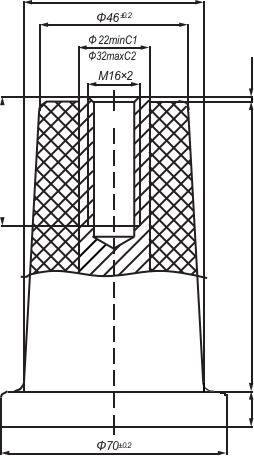

Epoxy Resin Bushings (24kV-630A RMU Bushings)

Epoxy Resin Bushings (24kV-630A RMU Bushings)

R 0.00
R 0.00
Sale Sold out
Vat Included
Shipping calculated at checkout.
Electrical Ratings
  • Maximum system voltage(Um): 24kV
  • Impulse: 125kV
  • AC withstand (1 Min): 54kV
  • P.D test at 30kV: <10pC
  • Continuous current: 630A
Application
  • For RMUswitchgear apparatus
  • System voltage(Um) of 24kV
  • Continuous Current 630 A
  • For indoor and outdoor installations
  • Mounting in vertical or horizontal position
 Standards
  • Meets the interface requirements of CENELEC HD506 S1, ANSI/IEEE 386, DIN 47636
  • Has been tested with mating parts to IEC 60502-4 and CENELEC HD 629.1 S1
Quality Assurance
  • Our manufacturing facility is registered to ISO 9001-2000 by third party audit
  • Required production test
  • 100% factory tested
Packaging

Supplied in a kit with all necessary parts.

Short Circuit Rastings
Interface type Contact type  Current rating (A) RMS symm (kA) 1 sec RMS symm (kA) 2 sec RMS symm (kA) 3 sec Peak symm (kA)
C1 Bolted 630 28.0 19.7 16.1 70
C2 Bolted 1250 75.0 53.0 43.3 >150

Catalogue

GANELEC/OUCO Transformer Equipment Accessories Catalogue - pg 20
