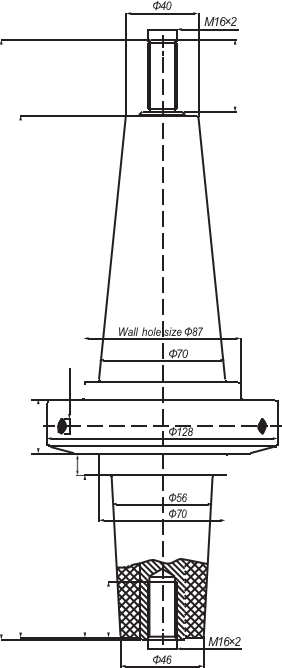

Epoxy Resin Bushings (36kV-630A Fixings for Transformer Bushings)
Epoxy Resin Bushings (36kV-630A Fixings for Transformer Bushings)
Regular price
R 0.00
Regular price
Sale price
R 0.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Electrical Ratings
- Maximum system voltage(Um): 24kV/36kV
- Impulse: 125kV/170kV
- AC withstand (1 Min): 54kV/81kV
- P.D test at 30kV: <10pC
- Continuous current: 630A
Application
- For oil-insulated (R-temp, hydrocarbon or silicon), apparatus, including switchgear, transformer and capacitors
- System voltage(Um) of 24kV and 36kV
- Continuous Current 630 A
- For indoor and outdoor installations
- Mounting in vertical or horizontal position
Standards
- Meets the interface requirements of CENELEC HD506 S1, ANSI/IEEE 386, DIN 47636
- Has been tested with mating parts to IEC 60502-4 and CENELEC HD 629.1 S1
Quality Assurance
- Our manufacturing facility is registered to ISO 9001-2000 by third party audit
- Required production test
- 100% factory tested
Packaging
Supplied in a kit with all necessary parts.
Specifications
| Product Code | Voltage Ur (kV) | Current Ir (A) | Dimensions (mm) A | Dimensions (mm) B |
| TGZ-630 | 12-24-36 | 630 | 332 | 159 |
Catalogue
GANELEC/OUCO Transformer Equipment Accessories Catalogue - pg 22
