Glassfibre Wrapping Wire - Aluminium, Wrapping Glassfibre Yarn, Class 180
Glassfibre Wrapping Wire - Aluminium, Wrapping Glassfibre Yarn, Class 180
Regular price
R 0.00
Regular price
Sale price
R 0.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product name:
GLFIBRE 180 1AL, GLFIBRE 180 2AL, GLFIBRE 180 3AL
Specifications:
Internal sinoalum or customer specification
Class: 180
- Temperature index: ≥ 180°C acc. to experience
- Heat shock: ≥ 200°C
Conductor material:
EN 1715 - EN AW1370 [Al99.7]
Shelf life:
5 years, under normal ambient conditions
Properties:
Excellent resistance to mechanical stress
Suitable in lightweight designs
Field of application:
- Generators
- Large motors
- Magnet coils
- Welding equipment
Standard packaging:
PT520

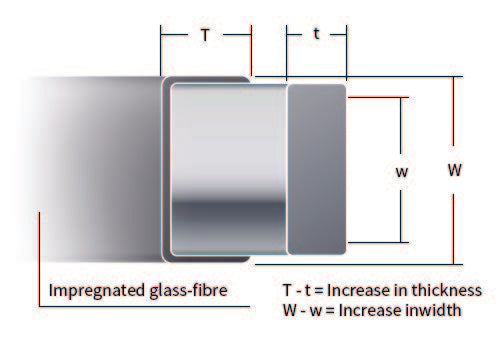

Insulation:
1-3 layers of glassfibre yarn
Impregnation: polyesterimide
Technical properties
| Main characteristics | Interval | Acceptance criteria |
| Electrical properties - conductor resistance | 0,02817 Ωmm²/m | 0,02817 Ωmm²/m |
| Conductivity | ＞ 35.5 m/(Ωmm²) |
＞ 35.5 m/(Ωmm.) |
|
Breakdown voltage:
|
All sizes |
|
| Mechanical properties - elongation |
t ≤ 3,15 t ＞ 3,15 |
≥ 15% ≥ 20% |
| Flexibility - bending flat wise | All sizes | 10 x thickness |
| Adherence | All sizes | 10% stretch, no loss of adhesion |
