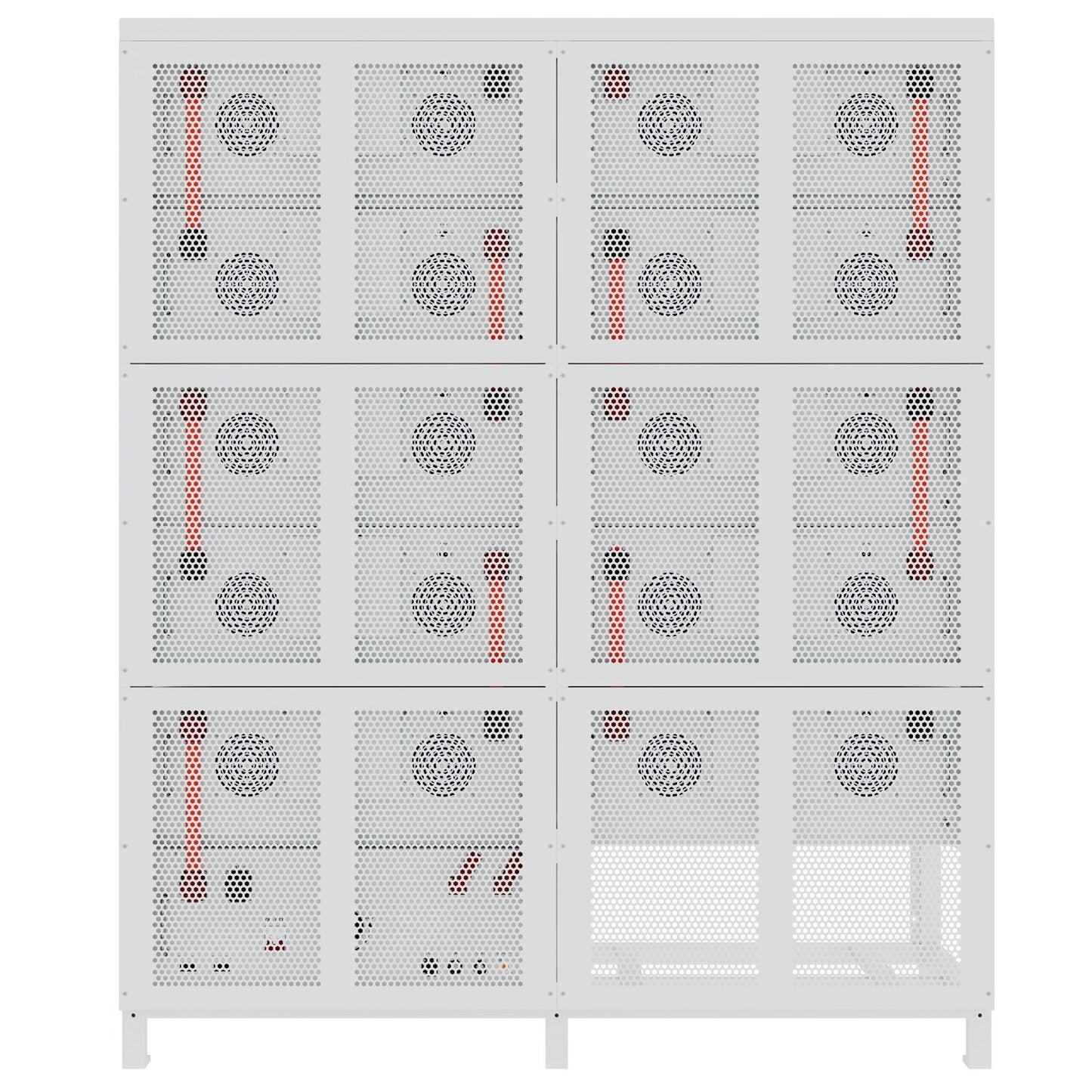

High Voltage Battery Energy Storage System (ESS) 384V/460V/614V/768V
High Voltage Battery Energy Storage System (ESS) 384V/460V/614V/768V
Regular price
R 0.00
Regular price
Sale price
R 0.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Zwayn provides 768V High-voltage energy storage system to provide energy storage solutions for the industrial and commercial fields. This energy storage system has very high commercial value. It can save you more electricity bills, provide power capacity management to reduce the price of electricity, and serve as a backup power supply when power supply is insufficient to provide energy security for industrial parks and avoid Losses caused by work stoppages due to power outages. Zwayn industrial and commercial energy storage systems are very suitable for commercial environments such as industrial parks and large factories to solve the power supply problems of enterprises.
Data Sheet
Specifications
| Model | HV-384V100AH | HV-460V100AH | HV-614V100AH | HV-768V280AH |
| Rated voltage | 384V | 460.8V | 614.4V | 768V |
| Rated capacity | 100Ah (0.5C) | 280Ah (0.5C) | ||
| Rated energy | 38.4KWH | 46KWH | 61.4KWH | 215.04KWH |
| Configuration | 120S1P | 144S1P | 192S1 | 240S1p |
| Charge voltage | 432VDC | 518VDC | 691VDC | 864VDC |
| Discharge voltage | 336VDC | 403VDc | 537VDC | 672VDC |
| Rated working current | 50A(0.5C) | 140A(0.5C) | ||
| Max. working current | 100A | 140A | ||
| Rated power | 19.2KW | 23KW | 30Kw | 107KW |
| Max.output power | 38.4KW(adjustable) | 46KW(adjustable) | 61KW (adjustable)| | 107KW(adjustable) |
| Recommended DoD | 90% | |||
| Range of working temp | -10~50°℃ | |||
| Working humidity range | 5-85%RH | |||
| Communication method | CAN2.0/RS485 | |||
| Compatible inverter brands | DEYE,Solis,Growatt,ATESS,Goodwe,Hoymiles,Afore, Megarevo,Invt,Pylontech,ThinkPower,Inhenergy |
|||
| Working indicator | Blue:Power;Green:Run;Red:Alarm | |||
| cycle life | 25±2°C,0.2C/0.2C，EOL70%≥6000 | |||
| Display method | 10 inch (LCD)/PC Software | |||
| Protection Voltage protection | over charge and over discharge | |||
| Protection Temp. protection | Over temperature range protection | |||
| Protection Current protection | YES | |||
| Protection Leakage protection | YES | |||
| Dielectric withstand voltage | 1000VDc(not less than 2GQ2) |
1000VDC(not less than 2GQ2) |
2500VDC(not less than 2GQ) |
2500VDC(not less than 2GQ2) |
| Dimension | 776*600*1250M | 776*600*1400MM | 776*600*1800MM| | 1545*800*1800MM |
| Weight | 400-500KG | 450-550KG | 600-700KG | 2.2-2.4T |
| Protection level | IP 20 | |||
