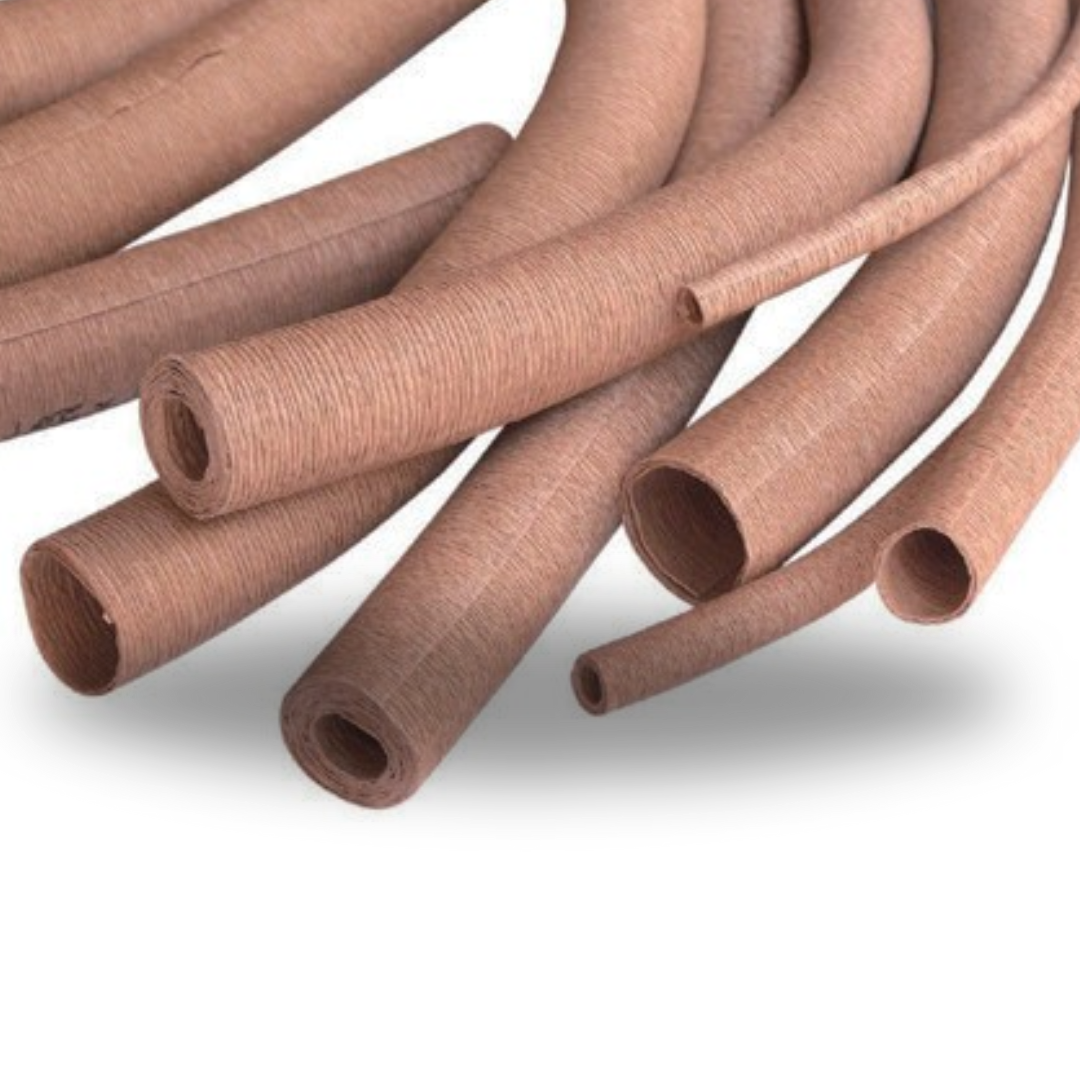

Insulation Crepe Tubing

Applications:

Crepe paper tubes for electrical insulation paper by electrical wrinkles by special processing, mainly for oil-immersed transformer wire insulation coating materiaI.

Reliable, soft, and not prone to breaking. Mainly used for oil-immersed transformer naked wire insulation package.

Description of Crepe Tubing

Made of Electrical Grade Insulation Crepe Kraft Paper. Direction of creping is transverse. Only the edge of outer layer is glued .

These tubes have extremely good compatibility with liquid dielectrics. Class “A” insulation (105ÅãC). The tube retains maximum oil due to use of crepe paper. These tubes can bend under extreme conditions without collapsing.

I.D. starting from 3 mm. O.D. Wall Thickness as per specification.

Standard length is 1000mm.

Tolerances: I.D. +0.5mm. O.D. +1.0m

Sizes and Tolerances

• Diameter: Length Lonely 1000mm 4-5-6-.....40mm
• Wall thickness: 1-1.5-2-3-4mm
• Length: 1000 and 1200mm
• Tolerances I.D=+0.5mm, O.D=+1mm, Length= +15mm -20mm

Further dimensions on request.
