Ganelec

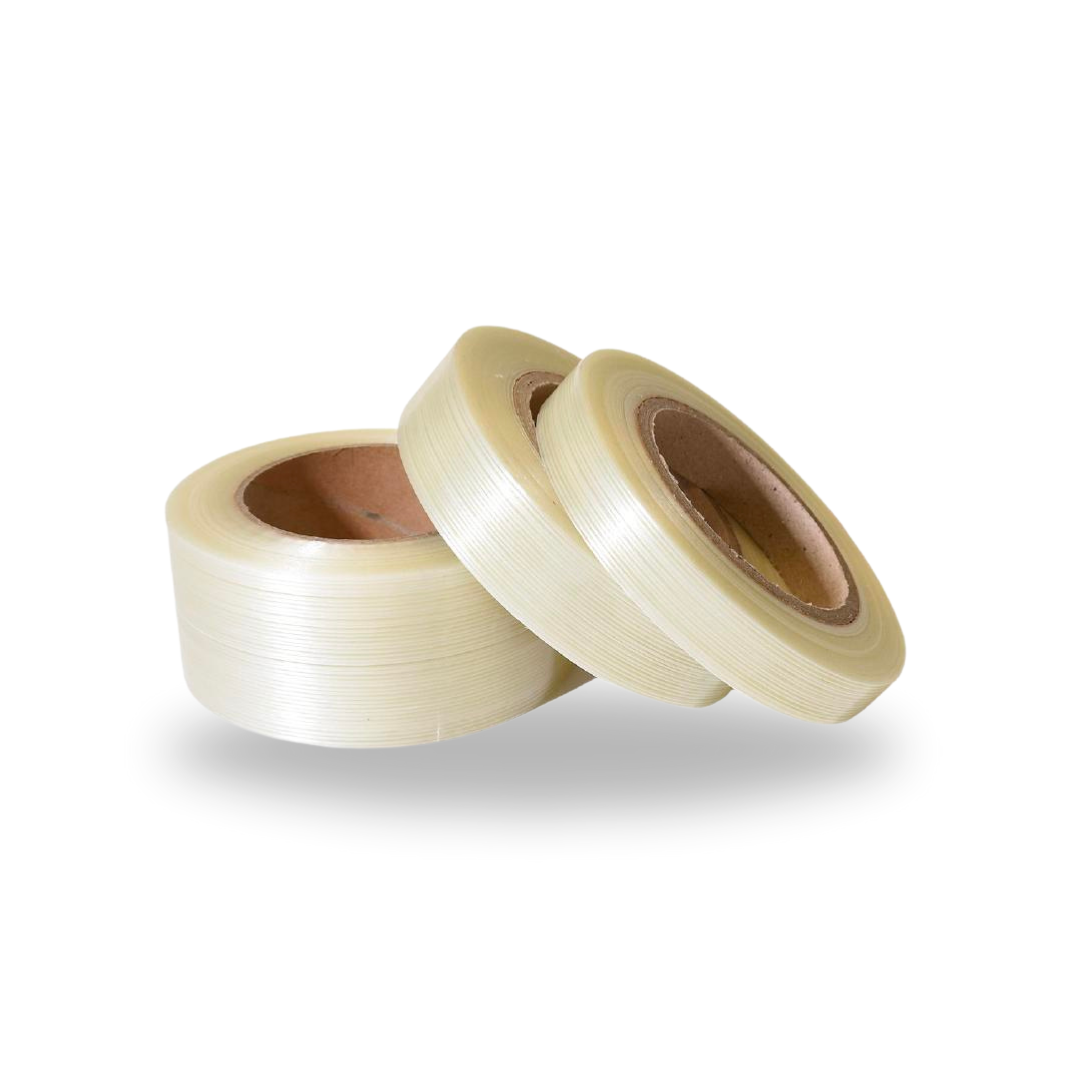

Oil Resistance Filament Electric Tape
Oil Resistance Filament Electric Tape
Regular price
R 0.00
Regular price
Sale price
R 0.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
High tensile strength glass filaments and conformable PET film coating with an aggressive adhesive for a variety of heavy-duty insulating, banding and holding applications.
Specially designed and intended for use in oil-filled transformers.
Once thermoset, the acrylic adhesive offers superior resistance to chemicals, solvents and ageing in addition to excellent dielectric strength and insulation resistance.
Product applications for 0.15mm
Lead and saddle tie down, banding and bundling motor and transformer coils and coil coverings.
| Backing | Polyester film/glass filaments |
| Adhesive | Thermosetting acrylic |
| Colour | Transparent adhesive |
| Total thickness (mil) | 5.9 mil (0.15mm) |
| Temp/Class | 155 Degrees Celsius |
| Dielectric strength | 5000 volts |
| Tensile strength | 360N/10mm |
| Adhesion to steel | 4.6N/10mm |
| Elongation (% at break) | 5 |
| Storage stability | Up to 24 months |
Product applications for 0.18mm
Lead and saddle tie down, banding and bundling motor and transformer coils and coil coverings.
| Backing | Polyester film/glass filaments |
| Adhesive | Thermosetting acrylic |
| Colour | Transparent adhesive |
| Total thickness (mil) | 7.25 mil (0.18mm) |
| Temp/Class | 155 Degrees Celsius |
| Dielectric strength | 5000 volts |
| Tensile strength | 400N/10mm |
| Adhesion to steel | 5.4N/10mm |
| Elongation (% at break) | 5 |
| Storage stability | Up to 24 months |
