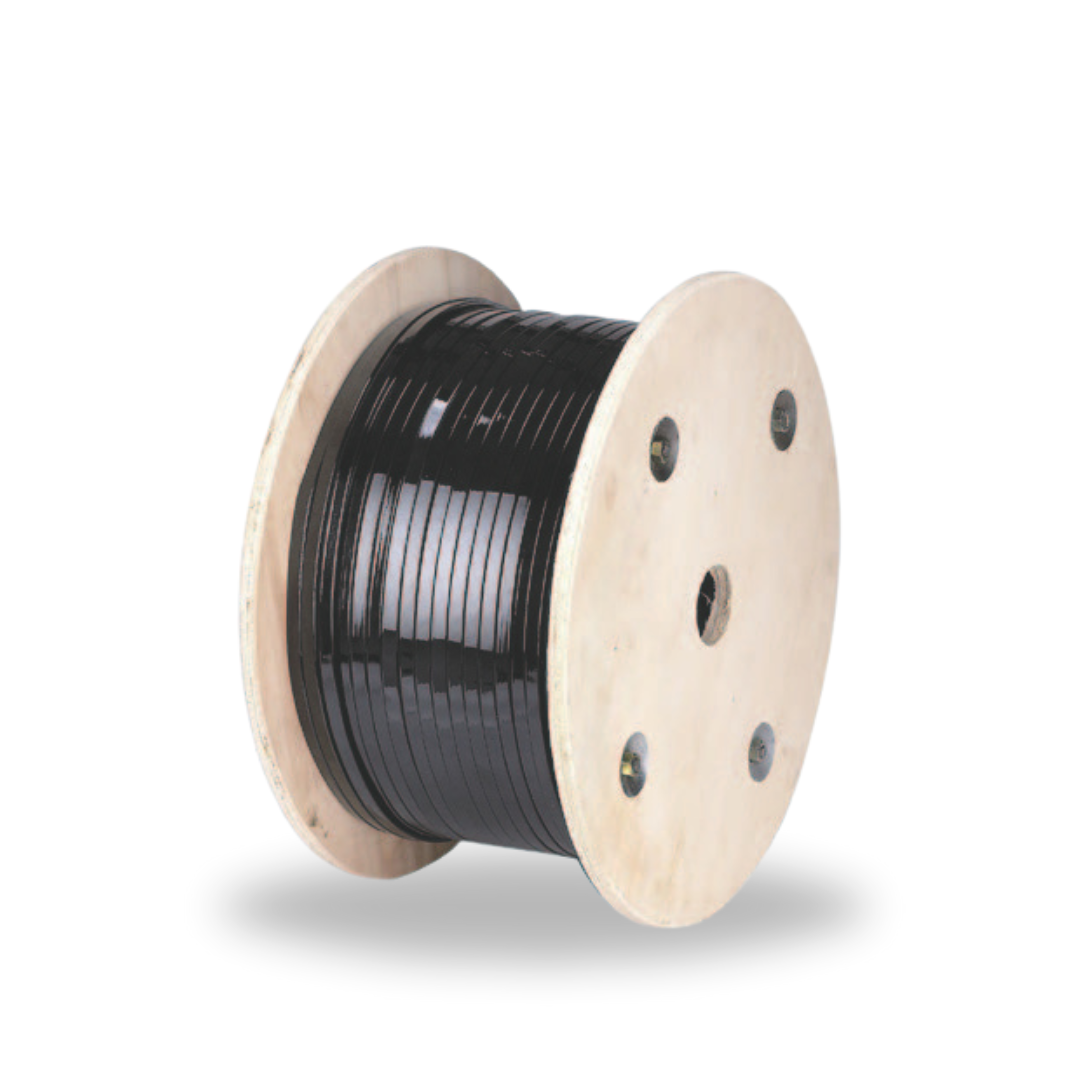

Rectangular Enamelled Wire - Aluminium, Heat Resistant, Class 200
Rectangular Enamelled Wire - Aluminium, Heat Resistant, Class 200
Regular price
R 0.00
Regular price
Sale price
R 0.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product name:
ATL200 AL - Gr 2
Specifications:
Internal Sinoalum (corresponding to IEC 60317-29)
Class: 200
- Temperature index: ≥ 200℃
- Heat shock: ≥ 220℃
Conductor material:
EN 1715 - EN AW1370 [Al 99.7]
Shelf life:
10 years, under normal ambient conditions
Properties:
- High heat resistance
- Allows lightweight designs
- Very good resistance to transformer oils
- Very good resistance to typical solvent
- Freon resistant
Field of application:
- Oil-filled transformers
- Dry transformers
- Small transformers
- Welding transformers
Standard packaging:
PT520

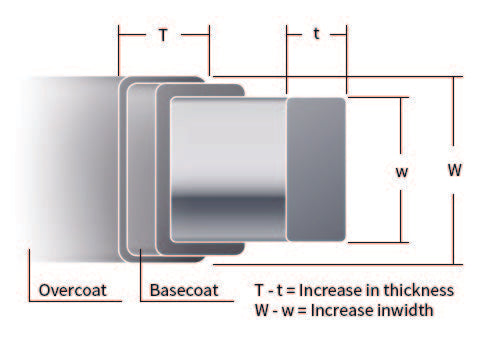

Insulation:
Basecoat: THEIC-modified polyester or polyesterimide
Overcoat: polyamide-imide
Technical properties:
| Main characteristics | Acceptance criteria | Test values for a damid200 sample (1,00mm, Gr 2) |
| Thermal properties (heat shock) |
≥ 220 oC, 6 x T |
≥ 220 oC, 6 x T |
| Temperature index |
≥ 200 oC1) |
≥ 200 oC1) |
| Electrical properties (conductor resistance) | 0,02817 Ωmm²/m | 0,02817 Ωmm²/m |
| Conductivity |
＞ 35.5 m/(Ωmm.) |
＞ 35.5 m/(Ωmm.) |
| Breakdown voltage | 2,0kV | 4,2kV |
| Adherence (cut and stretch) |
10 % stretch, loss of adhesion ＜ 1 x width |
15% stretch |
Catalogue
GANELEC/OUCO Transformer Equipment Accessories Catalogue - pg 7
