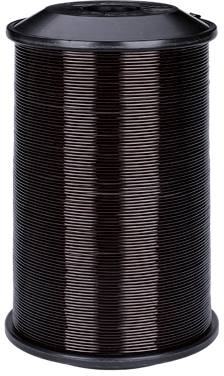

Round Enamelled Wire - Aluminium, Heat Resistant, Class 200
Round Enamelled Wire - Aluminium, Heat Resistant, Class 200
Regular price
R 0.00
Regular price
Sale price
R 0.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product name
ATL 200 AL - Gr 2, ATL 200 AL - Gr 3
Specifications
IEC 60317-25
Class: 200
Temperature index: ≥ 200℃
Heat shock: ≥ 220℃
Conductor material
EN 1715 - EN AW1370 [Al 99.7]
Shelf life
10 years, under normal ambient conditions
Properties
- High heat resistance
- Suitable in lightweight designs
- Very good resistance to transformer oils
- Very good resistance to typical solvent
- Freon resistant
Field of application
- Lightweight designs
- Electric motors
- Oil-cooled transformers
- Dry-insulated transformers
- Welding transformers
Dimension range
ATL 200 AL - Gr 2: 0,315 ≤ Ø ≤ 6,000
ATL 200 AL - Gr 3: 0,315 ≤ Ø ≤ 6,000
Technical Properties
| Main characteristics | Acceptance criteria | Test values for a damid200 sample (1,00mm, Gr2) |
| Thermal properties (heat shock) |
≥ 220 °C |
≥ 220 °C |
| Cut-through | ≥ 320 °C | OK at ≥ 340 °C |
| Temperature index |
≥ 200 °C1) |
≥ 200 °C1) |
| Electrical properties (conductor resistance) | 0,02817 Ωmm²/m 0,02817 | 0,02817 Ωmm²/m 0,02817 |
| Conductivity |
＞ 35.5 m/(ΩmmÇ) |
＞ 35.5 m/(ΩmmÇ) |
| Breakdown voltage |
IEC 60317-0-32) |
9,0kV |
| Mechanical properties (elongation) | IEC 60317-0-32) | 25% |
| Flexibility |
3 x Ø min 15% |
20% |
| Adherence | No loss of adhesion min.1107) | 140 |
Catalogue
GANELEC/OUCO Transformer Equipment Accessories Catalogue - pg 6
Standard packaging
0,315 ≤ Ø ＜ 0,900 PT25/PT60
0,900 ≤ Ø ＜ 6,000 PT60/PT90
