Round Enamelled Wire - Copper, Heat Resistant, Class 200
Round Enamelled Wire - Copper, Heat Resistant, Class 200
Regular price
R 0.00
Regular price
Sale price
R 0.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MProduct name:
CTL 200 - Gr 1, CTL 200 - Gr 2, CTL 200 - Gr 3
Specifications:
IEC 60317-13
Class: 200
- Temperature index: ≥ 200℃
- Heat shock: ≥ 220℃
Conductor material:
- EN 1977 - ETP1 CW003 A
- EN 1977 - ETP CW004A
- ASTM B49 - ETP C11000/C11040
Shelf life:
6 years, under normal ambient conditions
Properties:
- High heat resistance
- Suitable for winding in high-speed machines
- Very good resistance to transformer oils
- Very good resistance to typical solvent
- Freon resistant
- Excellent resistance to mechanical stress
Field of application:
- Electric motors
- Transformers
- All kinds of coils
- Ballasts
- Electric devices
Dimension range:
- CTL 200 - Gr 1: 0,090 ≤ Ø ≤ 6,00mm
- CTL 200 - Gr 2: 0,090 ≤ Ø ≤ 6,00mm
- CTL 200 - Gr 3: 0,355 ≤ Ø ≤ 6,00mm
Standard packaging:
PT25/PT60/PT90
depending on dimension and grade

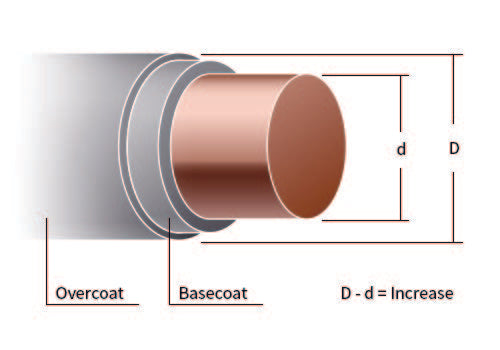

Insulation:
- Basecoat: THEIC-modified polyester or polyesterimide
- Overcoat: polyamide-imide
Technical properties
| Main characteristics | Acceptance criteria | Test values for a damid200 sample (1,00mm, Gr2) |
| Thermal properties (heat shock) |
≥ 220 °C |
≥ 220 °C |
| Cut-through | ≥ 320 °C |
≥ 400 °C |
| Temperature index | ≥ 200 °C1) | ≥ 200 °C1) |
| Electrical properties (conductor resistance) | 0,01724 Ωmm²/m | 0,01724 Ωmm²/m |
| Conductivity | ＞ 58 m/(Ωmm²) | ＞ 58 m/(Ωmm²) |
| Breakdown voltage | IEC 60317-0-12) | 7,0kV |
| Mechanical properties (elongation) |
IEC 60317-0-12) |
40% |
| Springiness |
IEC 60317-0-12) ≤ 5° |
45% |
| Flexibility |
1 × Ø min 32% |
15% + 11 × Ø |
| Adherence |
No loss of adhesion min. 1107) |
OK |
Catalogue
GANELEC/OUCO Transformer Equipment Accessories Catalogue - pg 8
