Rectangular Enamelled Wire - Copper, Heat Resistant, Class 200
Rectangular Enamelled Wire - Copper, Heat Resistant, Class 200
Regular price
R 0.00
Regular price
Sale price
R 0.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product name:
CTL 200
Specifications:
IEC 60317-29
Class: 200
- Temperature index: ≥ 200℃
- Heat shock: ≥ 220℃
Conductor material:
- EN 1977 - ETP1 CW003 AEN 1977
- EN CW004AASTM B49
- ETP C11000/C11040
Shelf life:
6 years, under normal ambient conditions
Properties:
- High heat resistance
- Very good resistance to transformer oils
- Very good resistance to typical solvent
- Freon resistant
- Excellent resistance to mechanical stress
Field of application:
- Electric motors
- Transformers
- Rotor coils
- Chokes
Dimension range:
- CTL 200 - Gr 1: 0,090 ≤ Ø ≤ 6,00mm
- CTL 200 - Gr 2: 0,090 ≤ Ø ≤ 6,00mm
- CTL 200 - Gr 3: 0,355 ≤ Ø ≤ 6,00mm
Standard packaging:
PT520

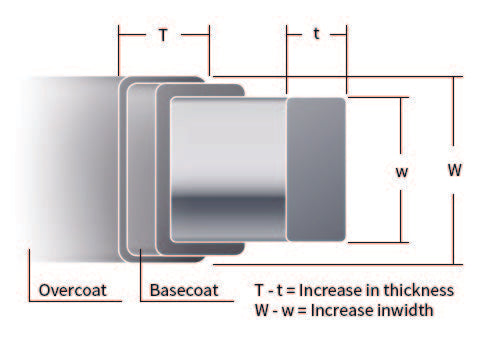

Insulation:
- Basecoat: THEIC-modified polyester or polyesterimide
- Overcoat: polyamide-imide
Technical properties
| Main characteristics | Acceptance criteria | Test values for a damid200 sample (1,00mm, Gr2) |
| Thermal properties (heat shock) |
≥ 220 °C, 6 x T |
≥ 220 °C, 6 x T |
| Temperature index | ≥ 200 °C1) | ≥ 200 °C1) |
| Electrical properties (conductor resistance) | 0,01724 Ωmm²/m | 0,01724 Ωmm²/m |
| Conductivity | ＞ 58 m/(Ωmm²) | ＞ 58 m/(Ωmm²) |
| Breakdown voltage | 2,0kV | 5,0kV |
| Adherence |
15% stretch, loss of adhesion <1 x width |
30% stretch |
Catalogue
GANELEC/OUCO Transformer Equipment Accessories Catalogue - pg 9
