Ganelec

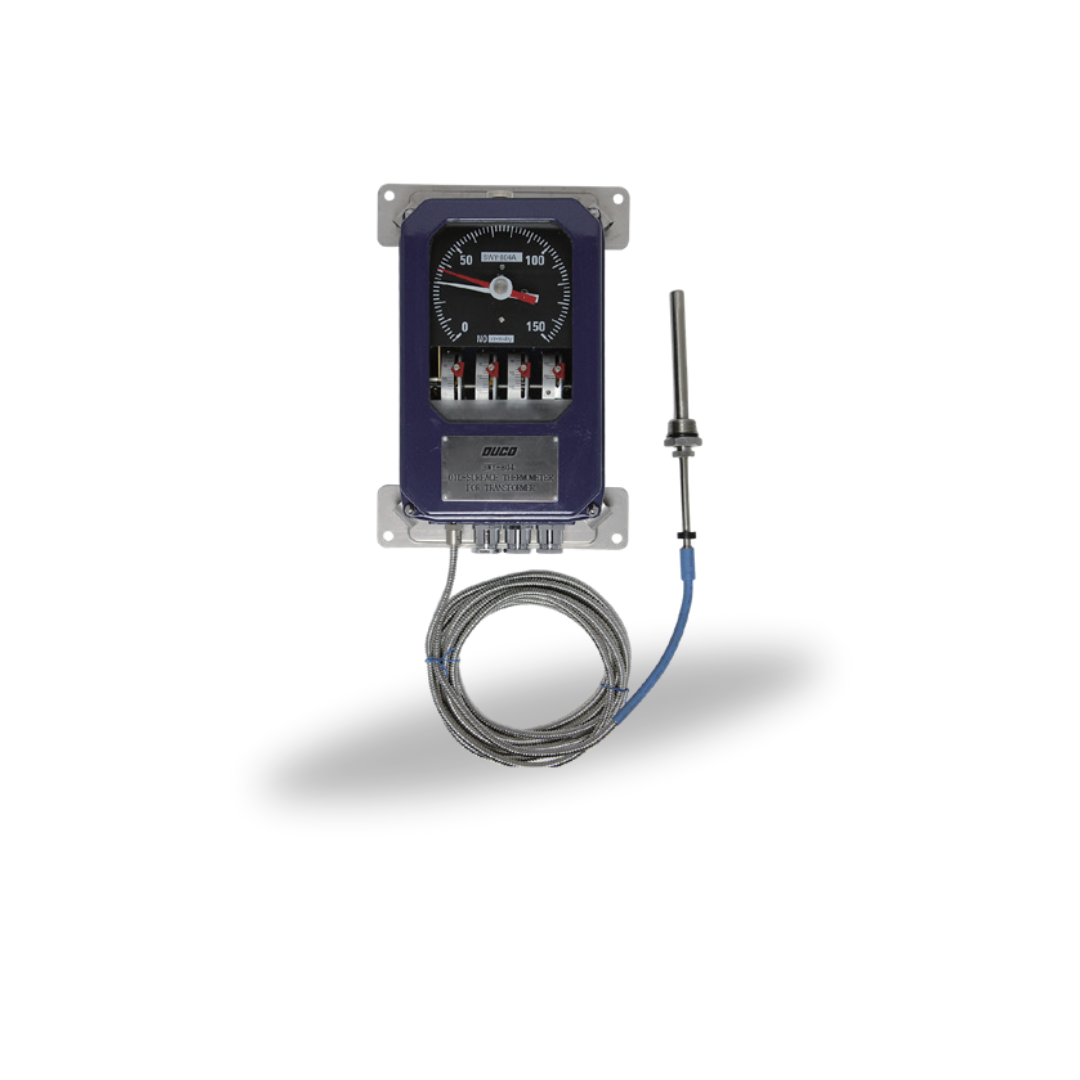

Thermometers

Thermometers

R 0.00
R 0.00
Sale Sold out
Vat Included
Shipping calculated at checkout.

Used for the measurement and control of the medium and man-sized transformer oil surface.

BWY-804 oil temperature thermometers & BWR-04 winding temperature thermometers. The configurations are shown below, others are available on request.

Capillary length, 5&12 meters are the standard.

Number of contacts, 2&4 are the standard (6 available on request)

  1. Ambient temperature:-30℃+55℃
  2. Range of measurement:0℃~150℃
  3. Controlling capability
  • (1)Setting range: full range (2)Setting accuracy: ±3℃ (3)switch balance :6±2℃ (4)Rated power: AC220V/5A (5)Standard setting point:
  1. K1=55℃ K2=65℃ K3=80℃ K4=120℃
  2. Output capability: Pt100 platinum resistance
  3. Prevent grade: IP55
  4. Instrument appearance and installing measure
Specifications
Part number Range  No. of contacts Type of contact Capillary length
BWY-804 Oti 2c 5M 0 to 150 2 Change over 5M Capillary
BWY-804 Oti 4c 5M 0 to 150 4 Change over 5M Capillary
BWY-804 Oti 2c 12M 0 to 150 2 Change over 12M Capillary
BWY-804 Oti 4c 12M 0 to 150 4 Change over 12M Capillary
BWR-04 Wti 2c 5M 0 to 150 2 Change over 5M Capillary
BWR-04 Wti 4c 5M 0 to 150 4 Change over  5M Capillary
BWR-04 Wti 2c 12M 0 to 150 2 Change over  12M Capillary
BWR-04 Wti 4c 12M 0 to 150 4 Change over 12M Capillary



Catalogue

GANELEC/OUCO Transformer Equipment Accessories Catalogue - pg 31
